Characteristics are described with a degree of granularity intended for die identification more so than for die classification. A characteristic may not span the entire die progression. Thus, not all characteristics may be present in any one coin.

1883-O VAM-36B I3R5 AW042018

Obverse: III2-19

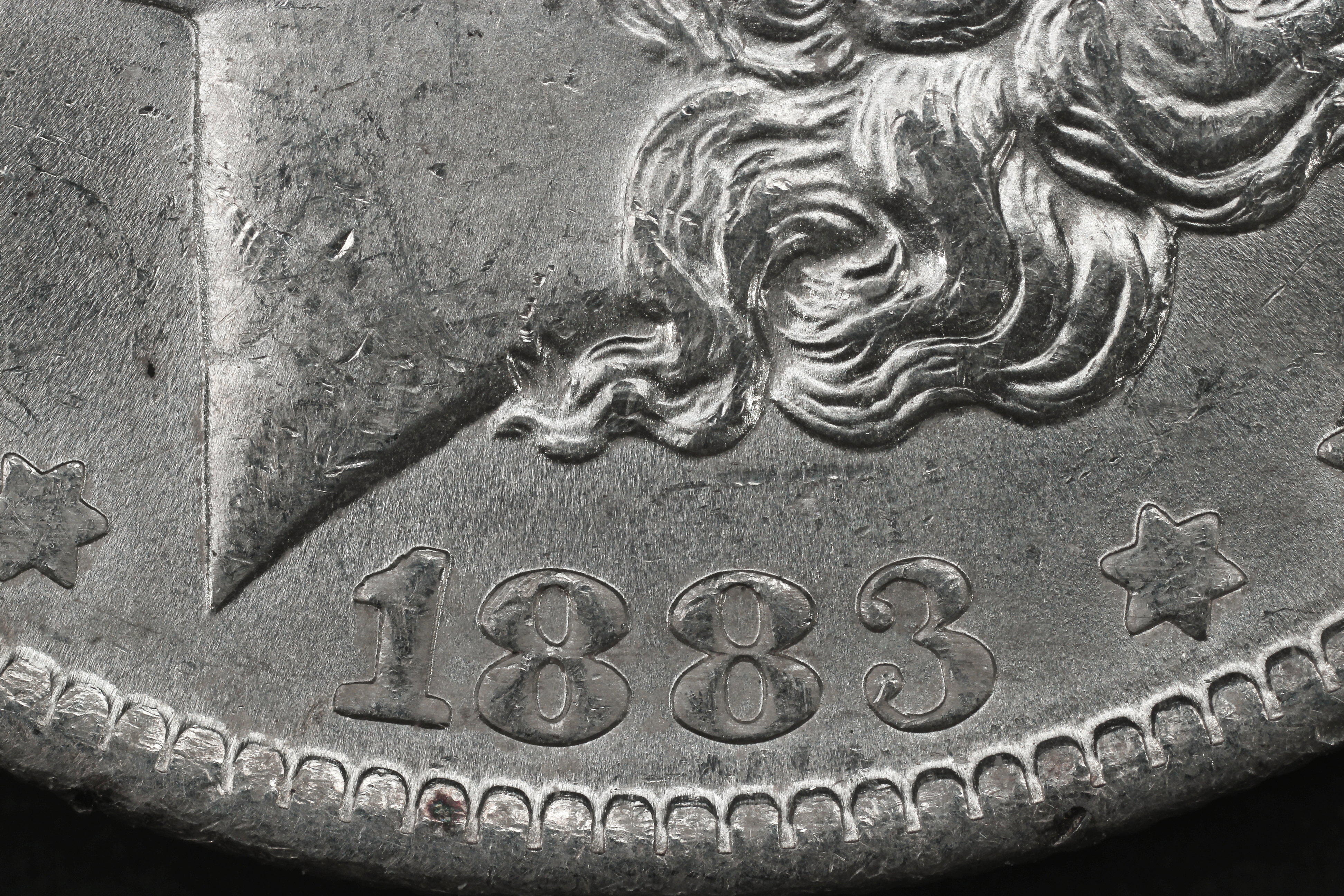

  • Date set in Normal position. 1 doubled at top left as two notches and at bottom of lower crossbar with notch at right. Lower loop of the 3 doubled on the inside with 3 slightly lower than the rest of the date numbers.

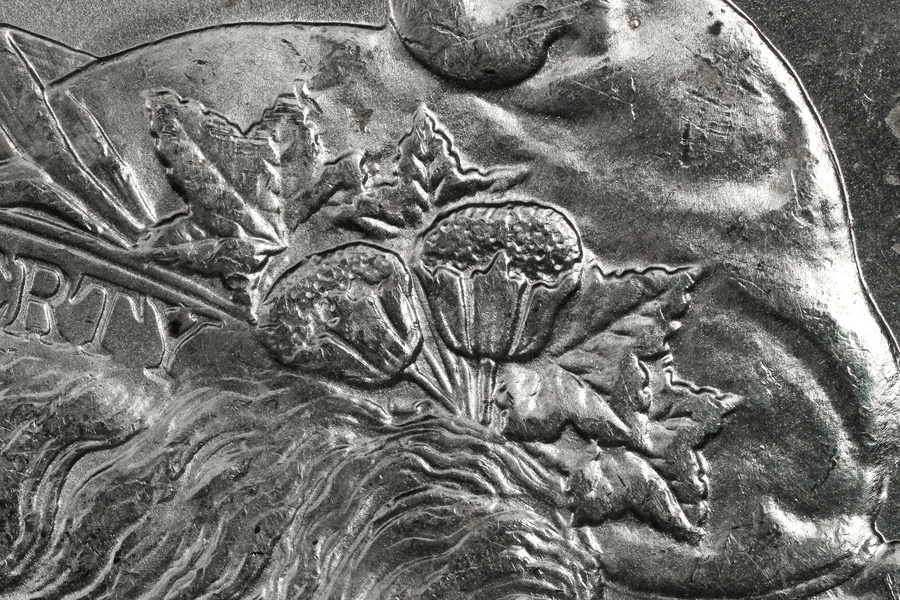

  • Remnant of a wreath clash at the right side of the wheat leaf at top of cap.

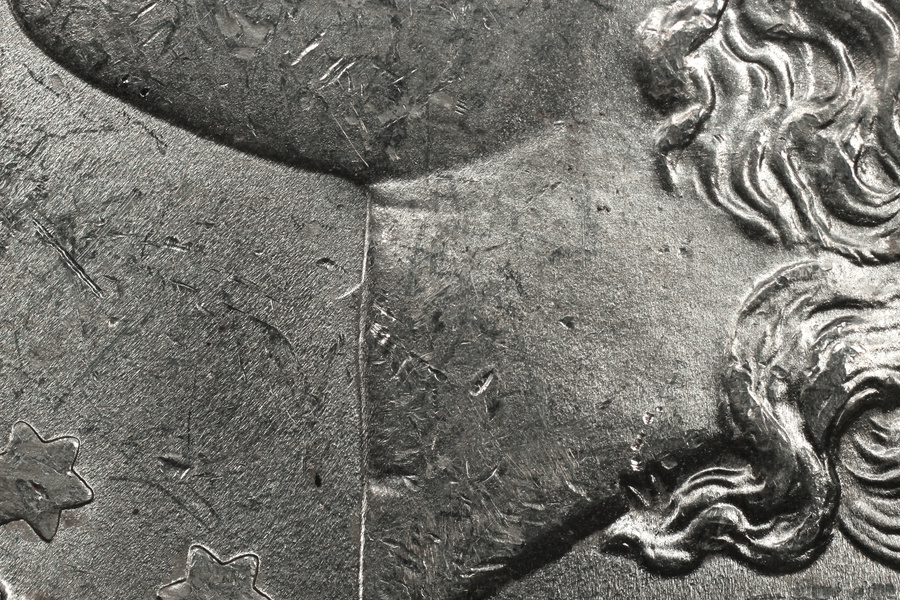

  • Very weak wing clash at Liberty's neck. No letter transfer.

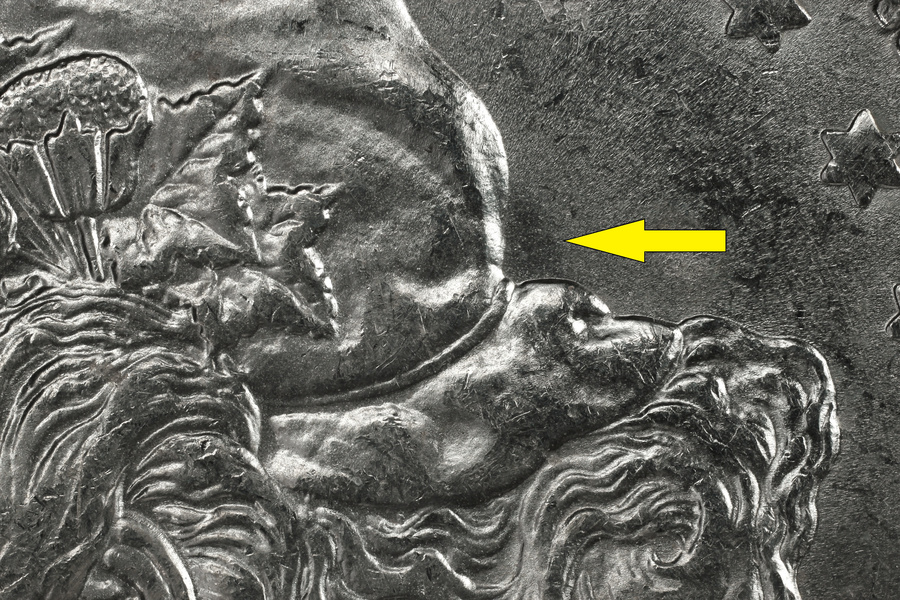

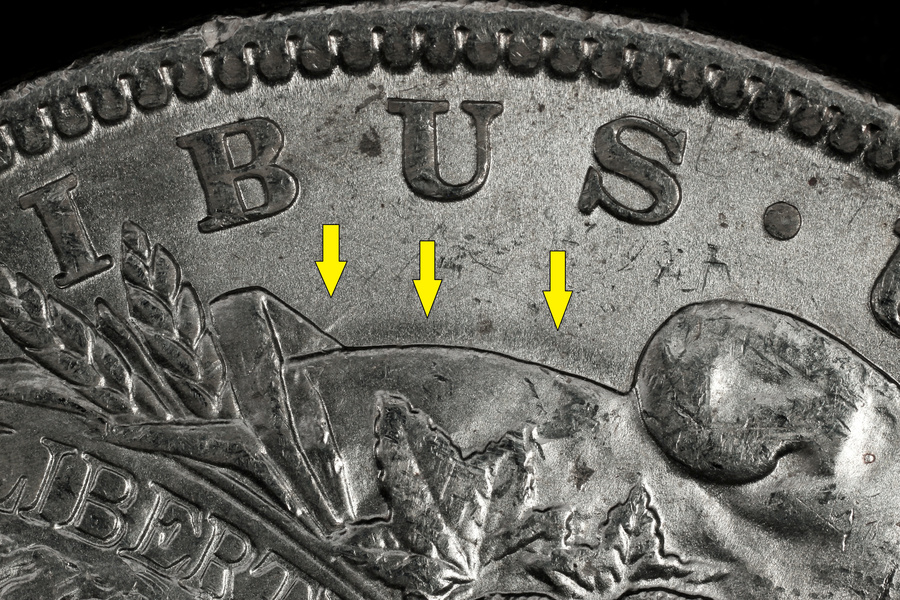

  • Beveled fields at top of Phrygian cap and back of cap ribbon from over polishing to remove die clash marks.

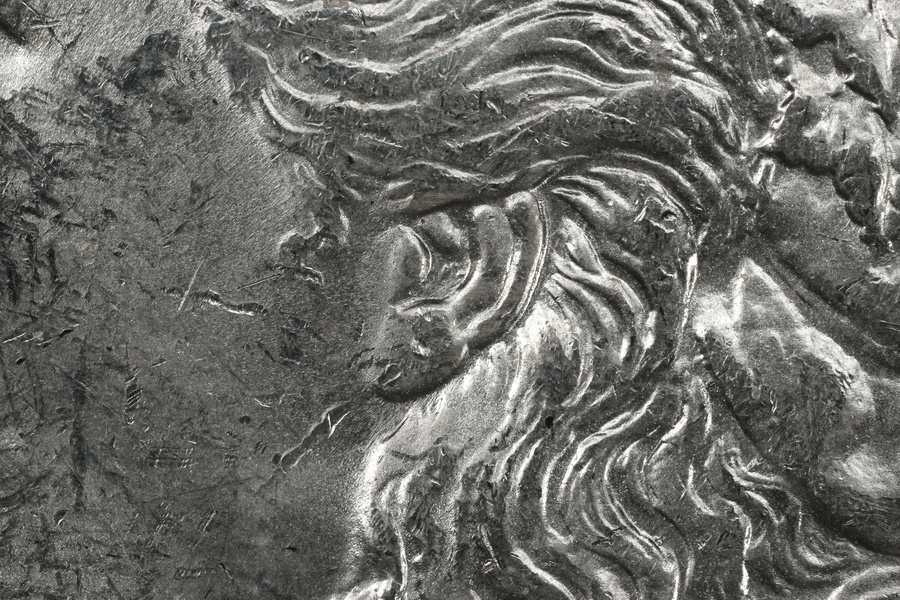

  • Markers Die chips inside of the ear.
Reverse C3a

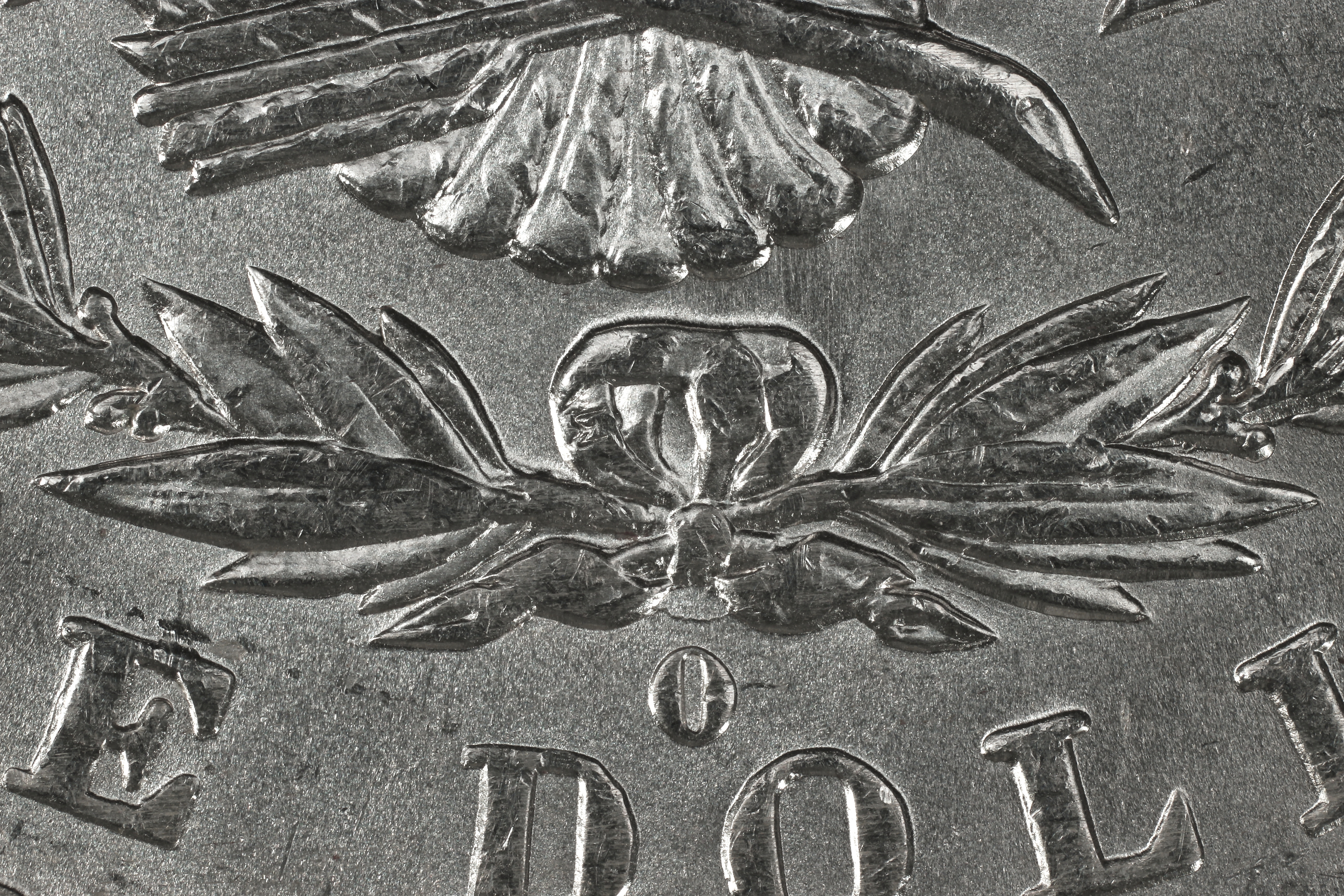

  • Bridge die crack above the mint mark at bottom of bow.

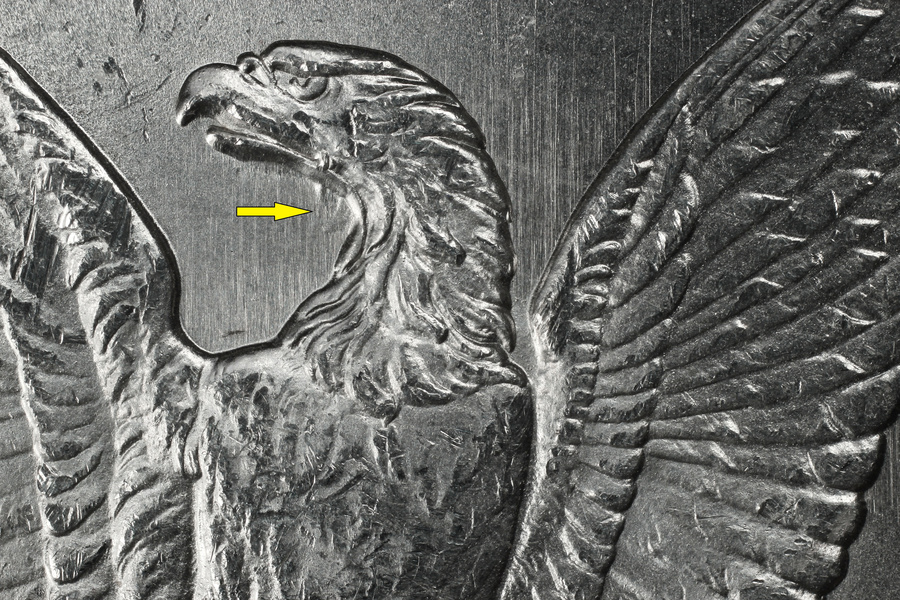

  • Weak hair clash marks on the right side of eagles neck.
  • Weak cap vee clash at inside of RW1.

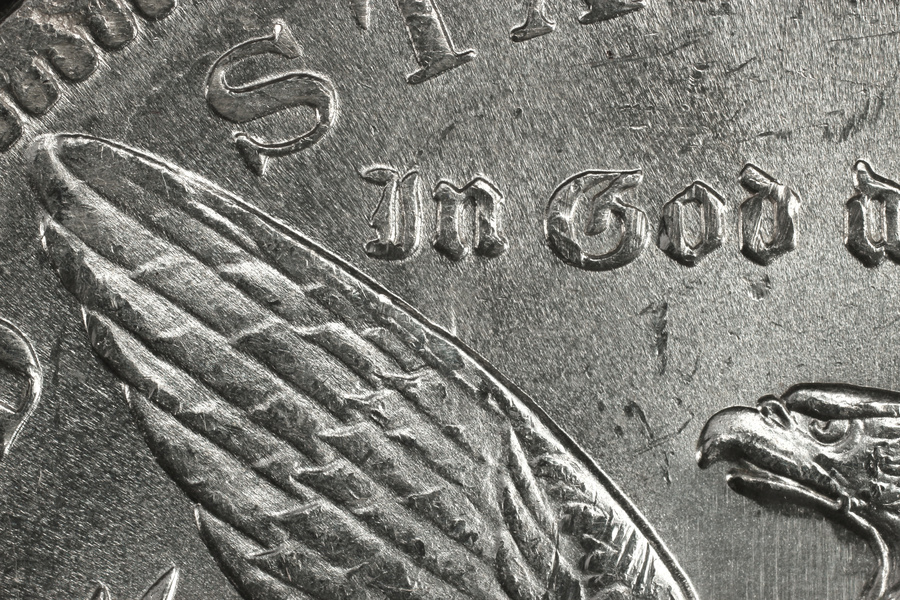

  • Very weak neck clash at the top of eagles right wing. Clash does not engage the n of In. No letter transfer.
  • Polish lines in the field above the eagle's wings and around head.

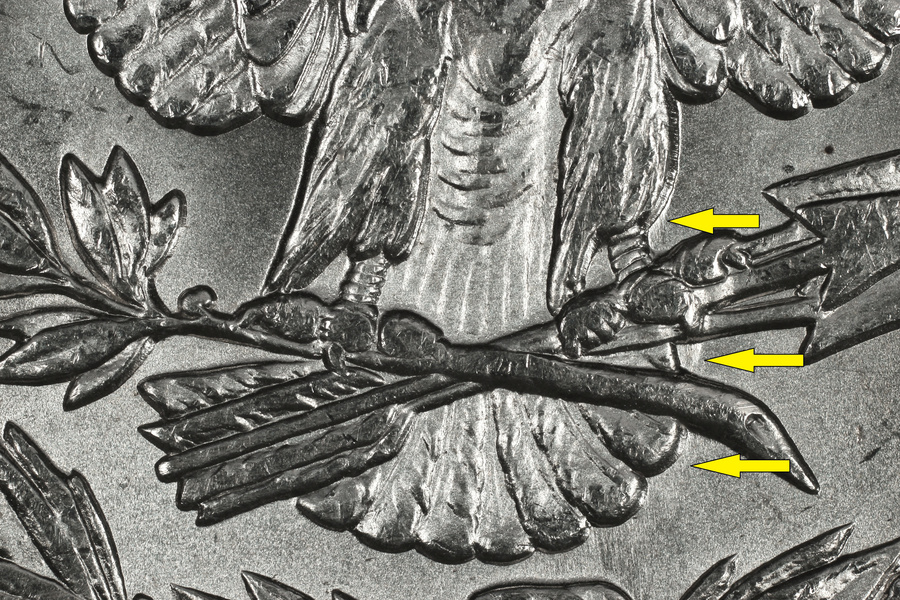

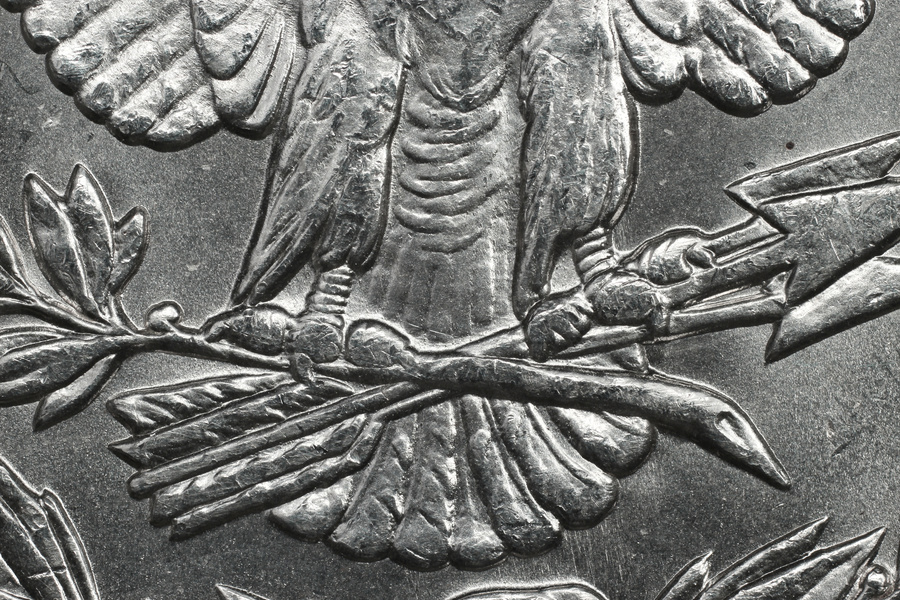

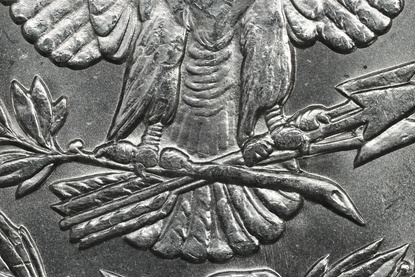

  • Some heavy die polishing/beveling at eagle's left side of left foot, between the end of the olive branch and lower arrow shaft, and to the left of lower tail feather #1.

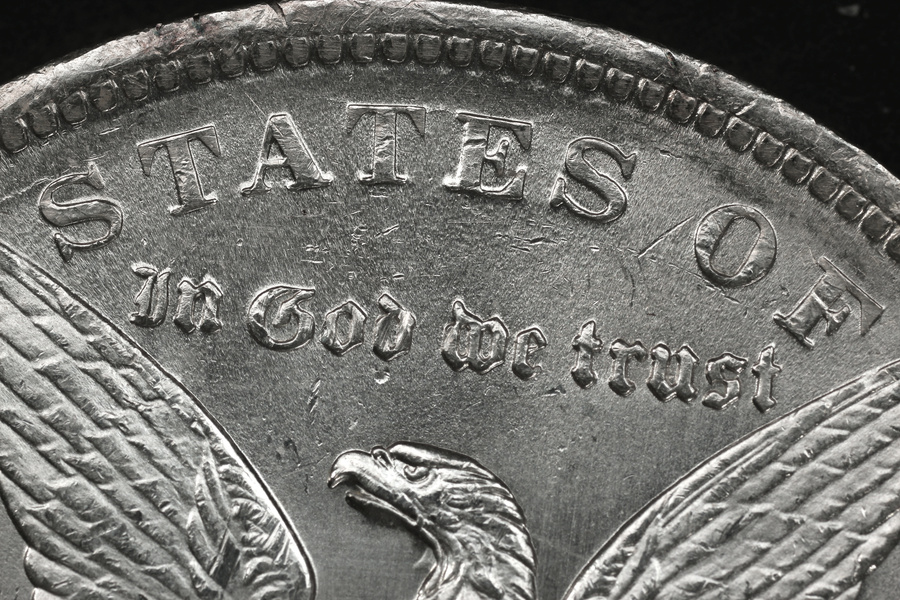

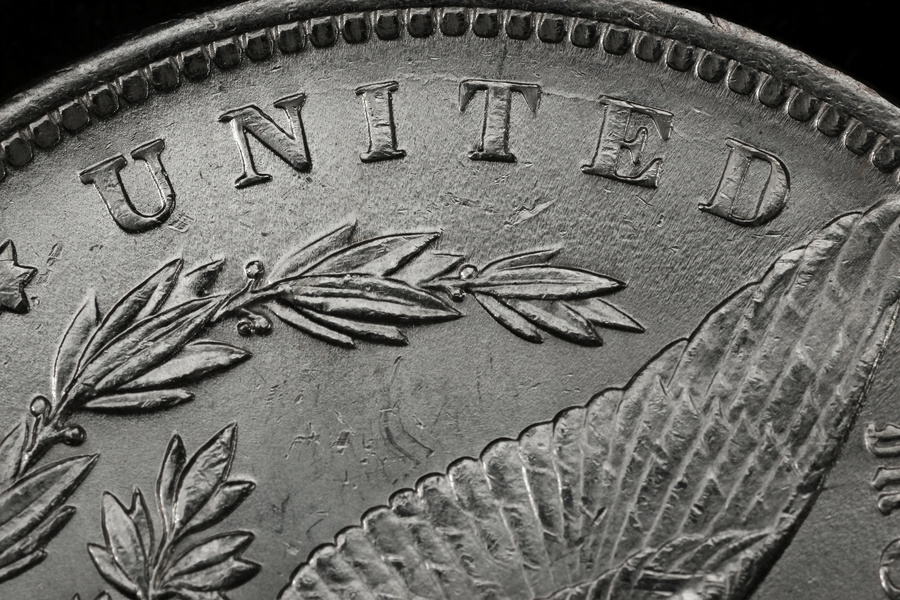

  • Die crack at the top right of N, across the tops of ITED of UNITED and wing tip, terminating at top left side of first S in STATES.
  • Die crack from the denticles above the A in STATES and across the TE.
  • Weak die crack from the denticles above the O in OF going thru the F and into the left wing tip.
Table of Progression
Comments: The bridge crack above the mint mark is not present on earlier die states. See Ron Gapa's VAM-36A Die Progression Study here. The following die progression synopsis courtesy of John Roberts, ANACS in Vamview,Issue 12,June 2008.
  • VAM-22: no clash; exact marriage of VAM 22A in an earlier stage.
  • VAM-22A: one clash and a repolishing. Fairly strong E reverse.
  • VAM-36A: obverse die changed, E reverse stage with no clash on obv (unreported).
  • VAM-36A: second clash, E weakened, DO from DOLLAR on obverse.
  • VAM-36A: third clash and second repolishing,E fades off die.
  • VAM-36: later strikings of 3-clash stage with E worn, crushed, and polished away.
  • VAM-36: 4th clash with doubled line in hair and strong crack under bow knot
VAMWorld: [ VAM 1H ] [ VAM 22 ] [ VAM 22A ] [ VAM 36 ] [ VAM 36A ] [ VAM 36B ] [ 1883-O VW List ] [ PTP: andywoj00 ]
arrowbdown Bottom

Photographs:

Click on a photograph to enlarge. Then click on an area of interest for maximum detail. Click "back" to return.

Full Coin

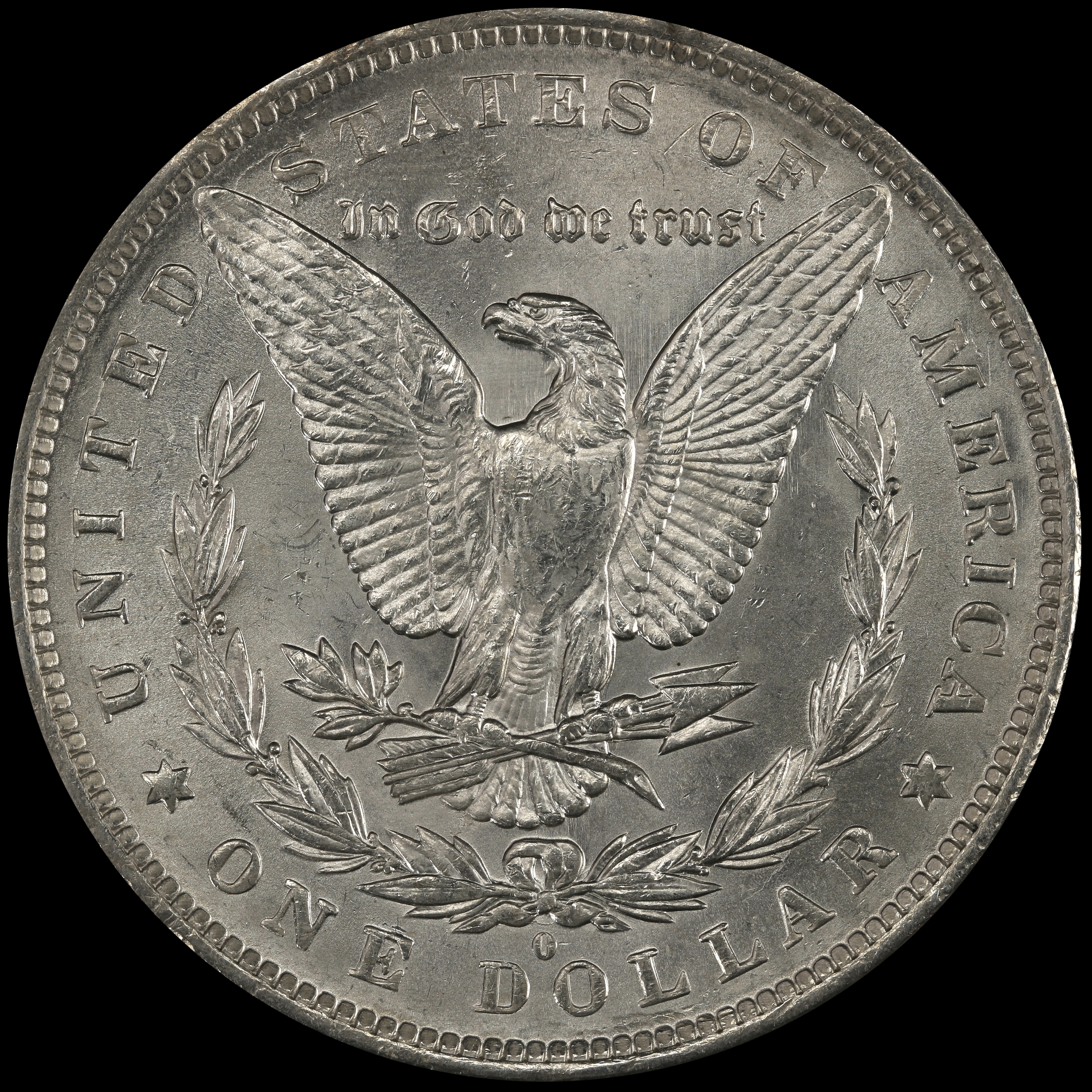

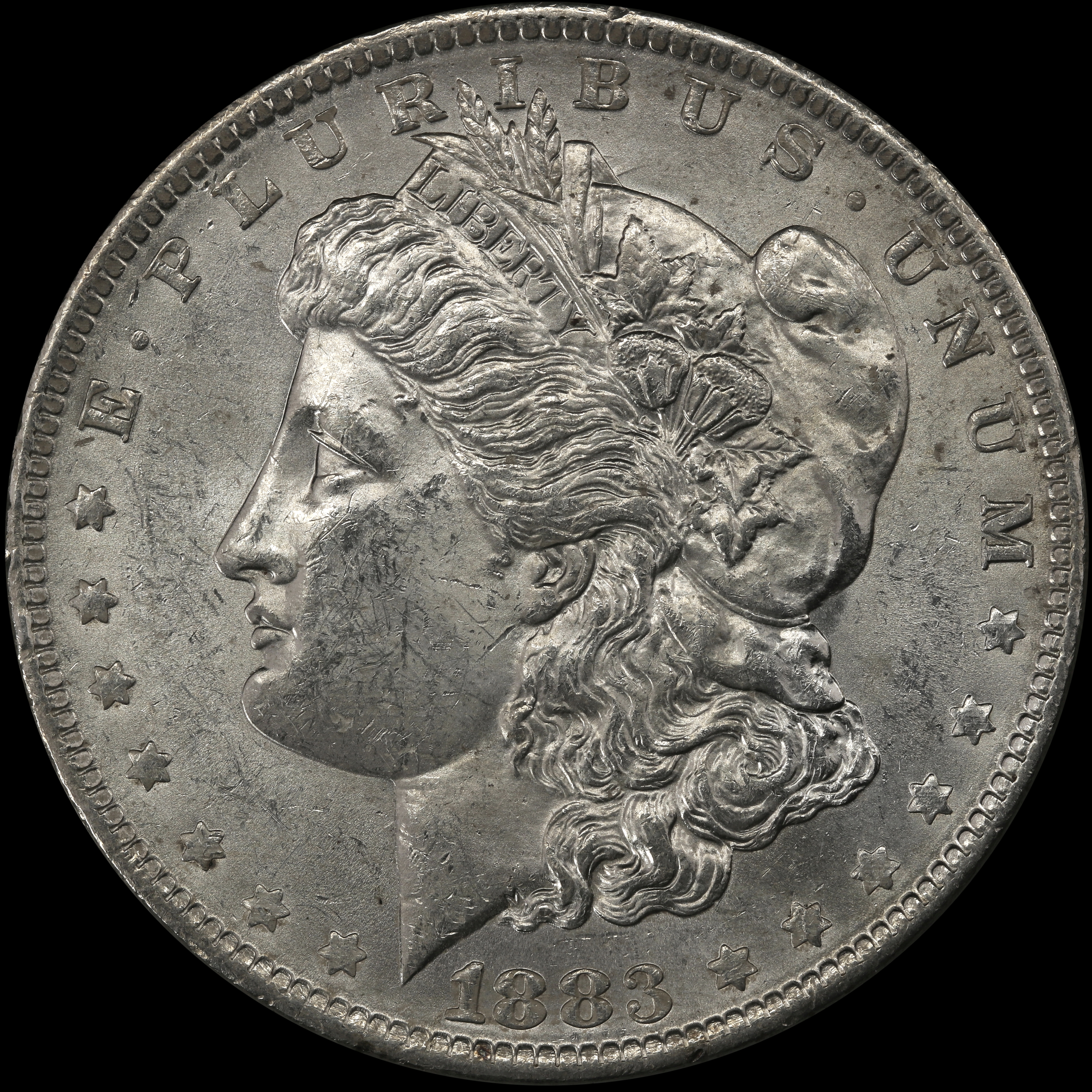

1883-O VAM-36B AW042018 Coin #1
1883O AW042018 Obv LFCP.jpg 1883O AW042018 Rev LFCP.jpg
Comment. Comment.
arrowbup Top arrowbdown Bottom

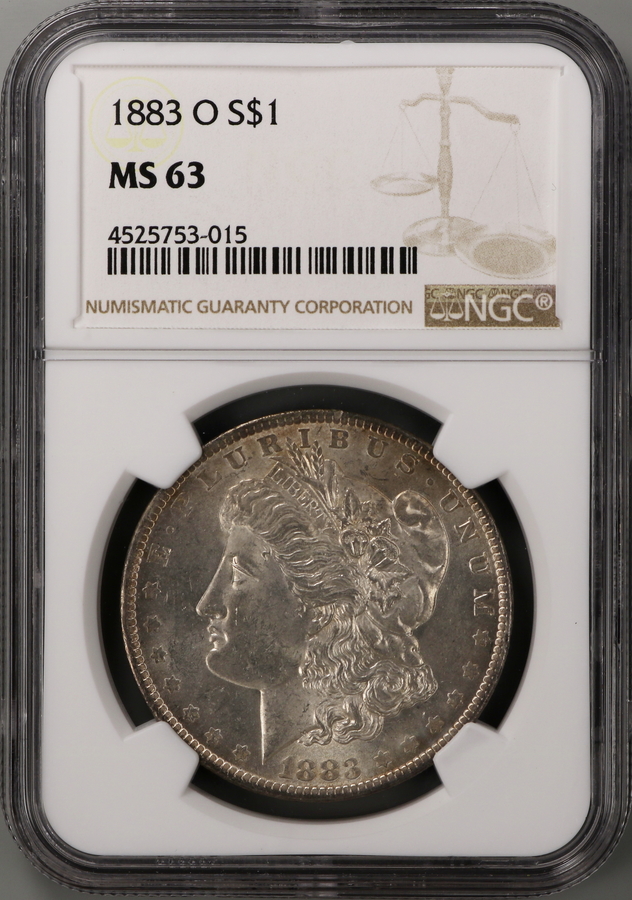

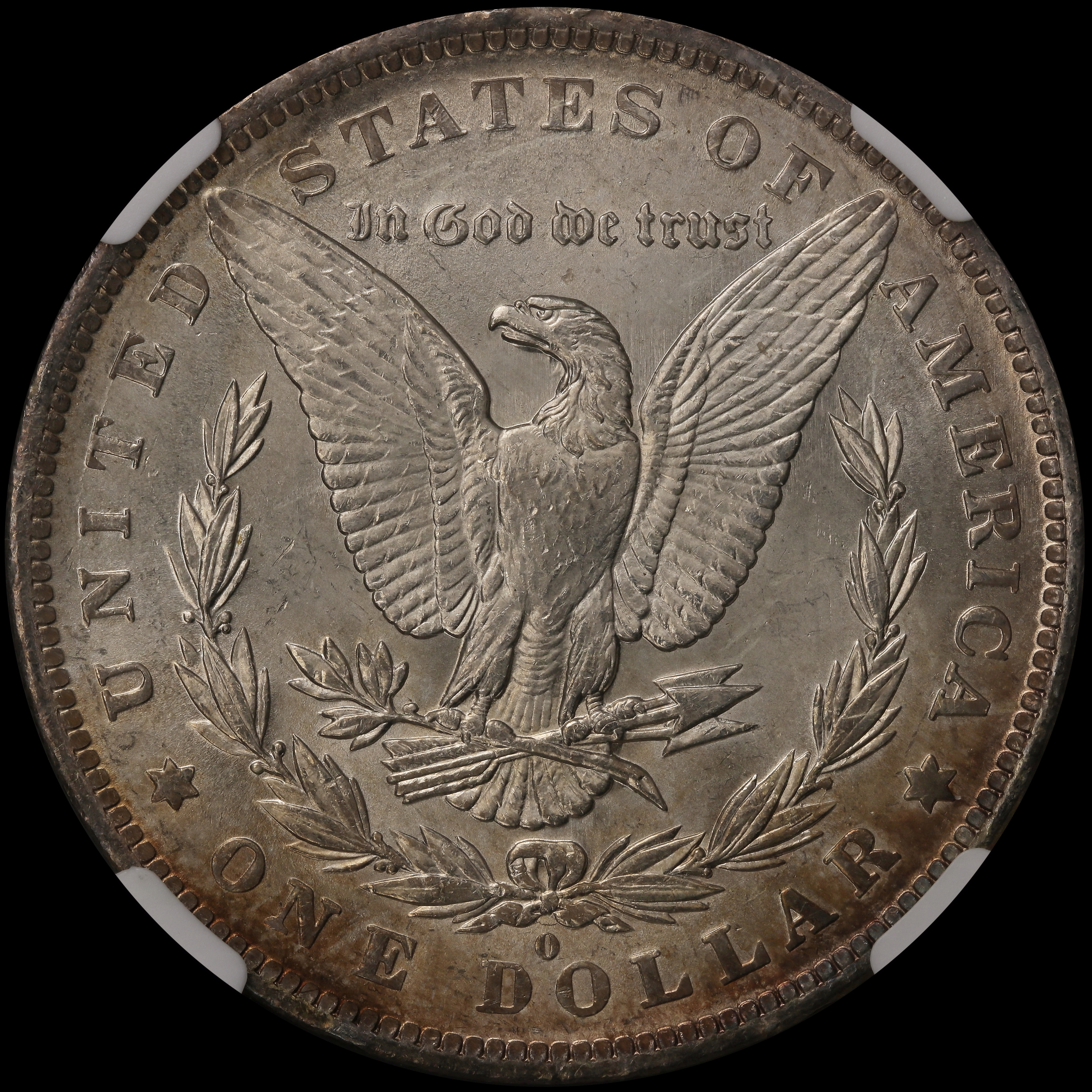

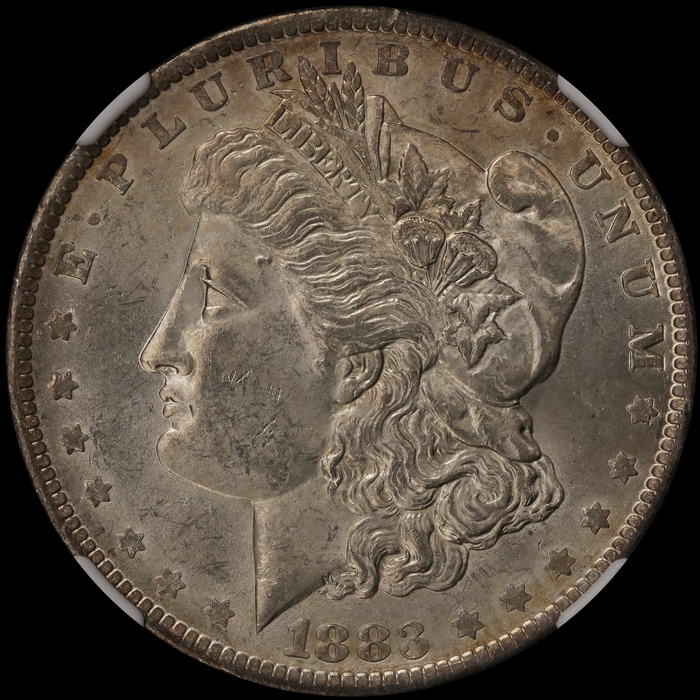

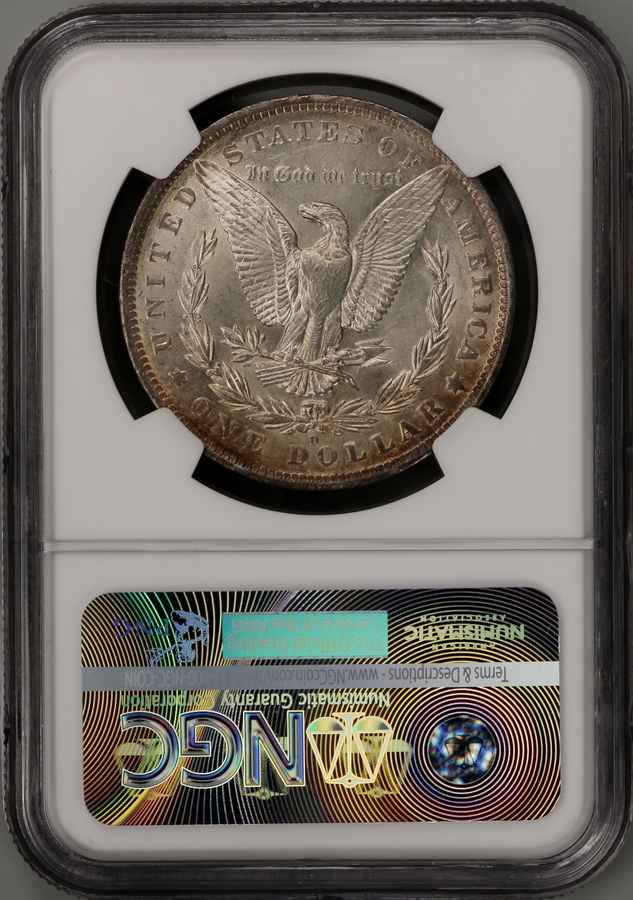

1883-O VAM-36B AW050218 Coin #2 MS63
1883O AW050218 Obv LFCP.jpg 1883O AW050218 Rev LFCP.jpg
Comment. Comment.
arrowbup Top arrowbdown Bottom

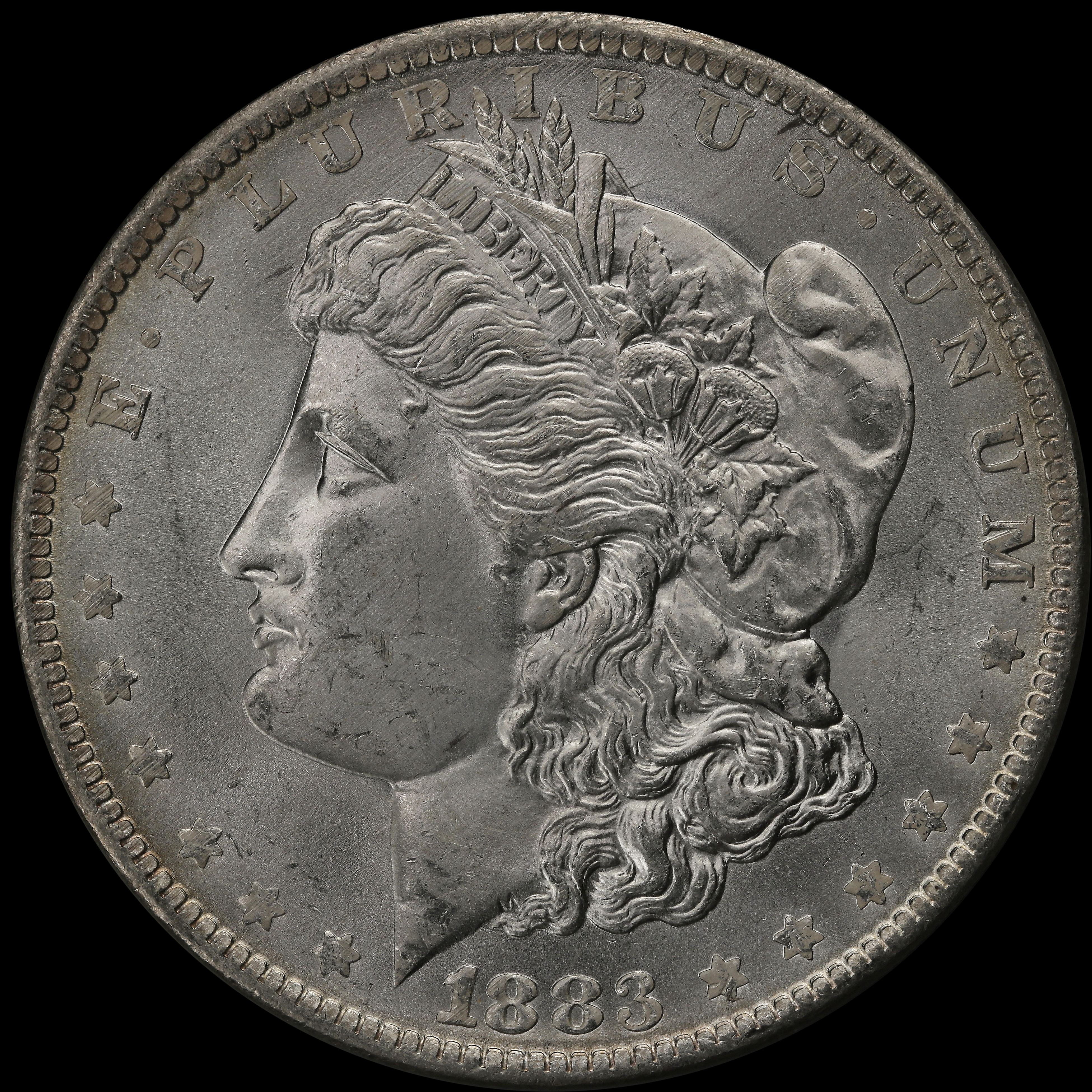

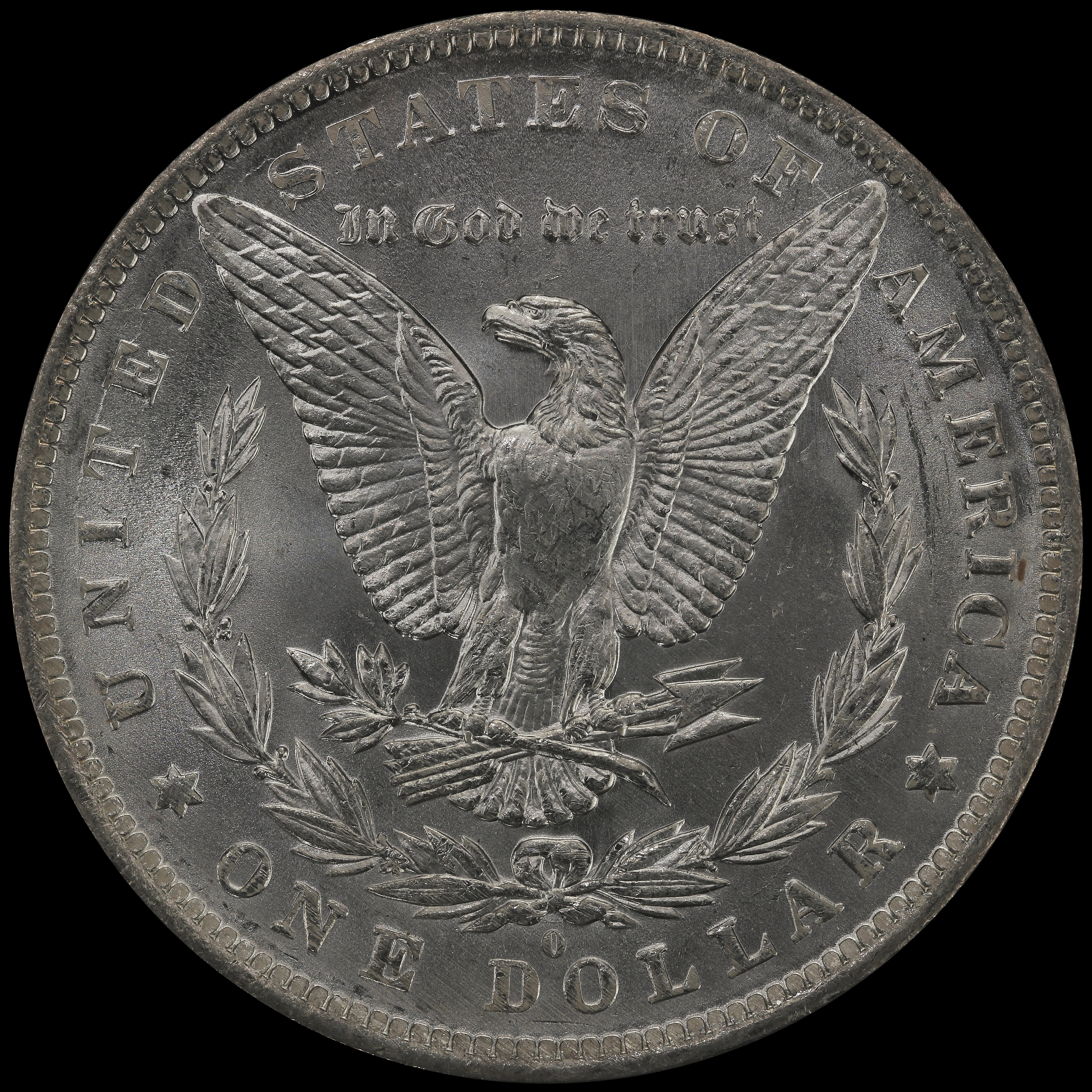

1883-O VAM-36B AW100918 Coin #3
1883O AW100918 Obv LFCP.jpg 1883O AW100918 Rev LFCP.jpg
Comment. Comment.
arrowbup Top arrowbdown Bottom

Date and Mint Mark Coin #1

1883-O VAM-36B AW042018
aw 042018a.jpg aw 042018i.jpg
Comment. Comment.
arrowbup Top arrowbdown Bottom

Regional Landscape

Click on a photograph to enter gallery format. Click the file name link at bottom left of the gallery display to enlarge photograph. Click on an area of interest for maximum detail. Click "back" to return.
aw_042018a aw_042018b aw_042018c aw_042018d aw_042018e aw_042018f aw_042018g aw_042018h aw_042018i aw_042018j aw_042018k aw_042018l aw_042018m aw_042018n aw_042018o aw_042018p aw_042018q aw_050218y aw_050218z
